Description

The Detailed Construction Process of EA-400 structure Anchor Adhesive:

Mark Up Hole Position and Drill Hole:

Drill holes in designed position. The depth and diameter of the hole should meet the requirements in order to meet bonding area and ensure the pulling strength.

Clean Hole:

Clean and blow holes. Brush and blow for three times at least is recommended.

Glue Preparation:

EA-400 is equipped with a special static mixer and dispenser. Squeeze out the glue without fully mixed in the front part of the cartridge.

Injection:

Inject the glue from the bottom of the hole until fill the two-third of the hole.

Rust Removal of Steel Rebar:

Polish the steel bar or anchor bolt before inserted through the hole.

Anchoring:

Inserting in one single direction until to the bottom of the hole.

Standing and Curing:

Keep stand for maintenance before curing.

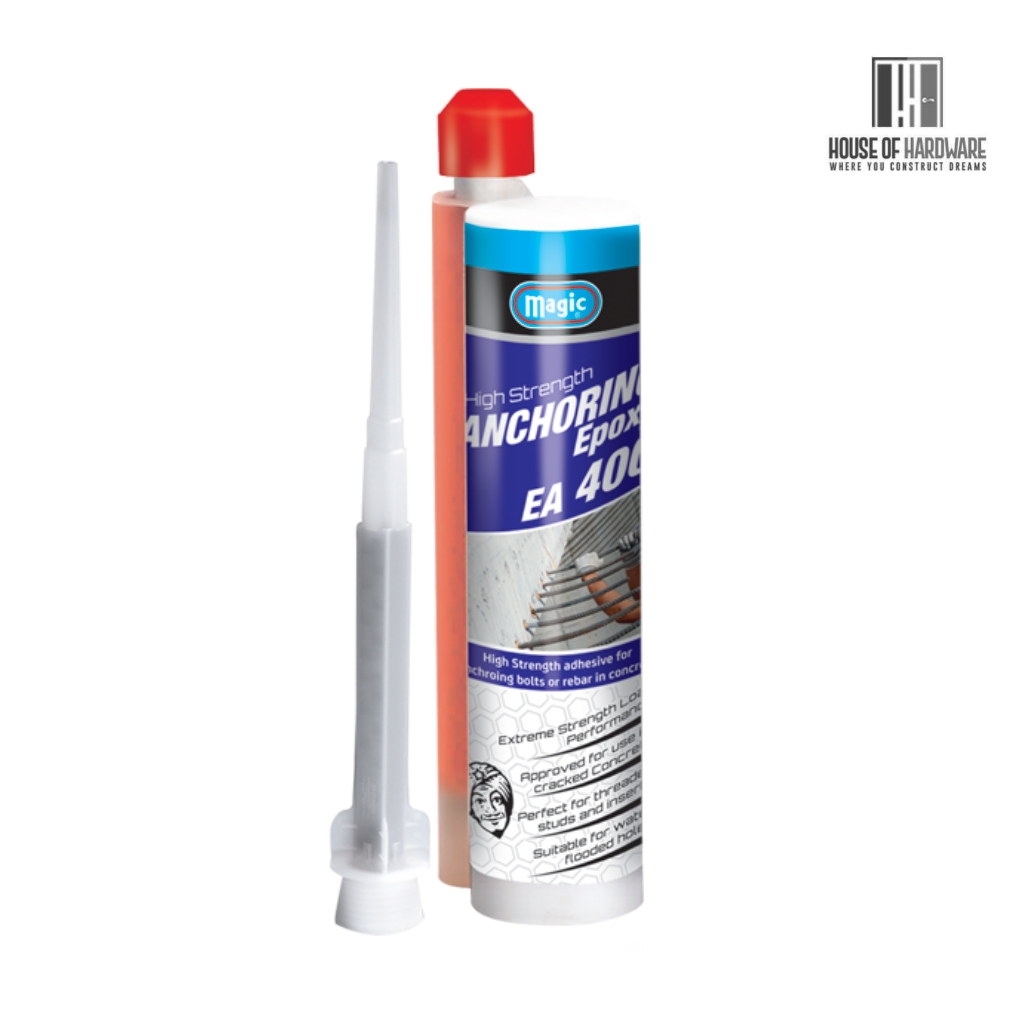

EA-400

Note:

EA-400 Anchoring Adhesive can be equipped with the following materials: screw thread steel, round steel, lead screw, threaded rod, anti-crack anchor.
